High Survival Tray Seedling Cover Plastic Making Machine Plastic Seed Tray Thermoforming Machine Vacuum Forming Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Basic Info.
Model NO.
HS Code
84774090

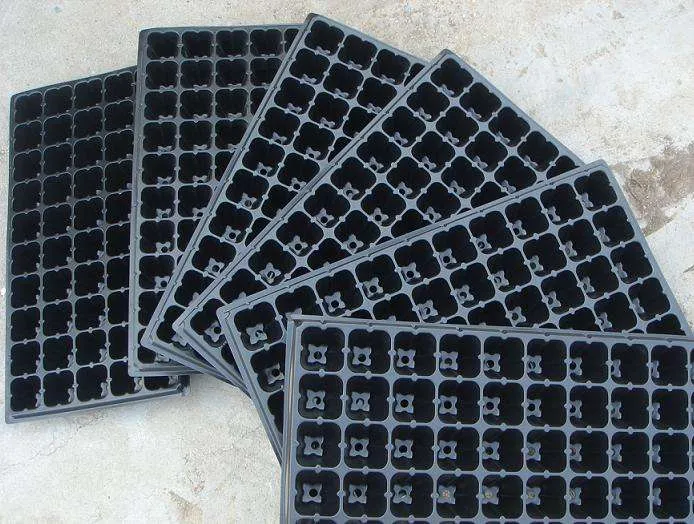

High Survival Hydroponic Tray Seedling Cover Plastic Making Machine Thermoforming Vacuum Forming Machine
![High Survival Tray Seedling Cover Plastic Making Machine Plastic Seed Tray Thermoforming Machine Vacuum Forming Machine]()
![High Survival Tray Seedling Cover Plastic Making Machine Plastic Seed Tray Thermoforming Machine Vacuum Forming Machine]()

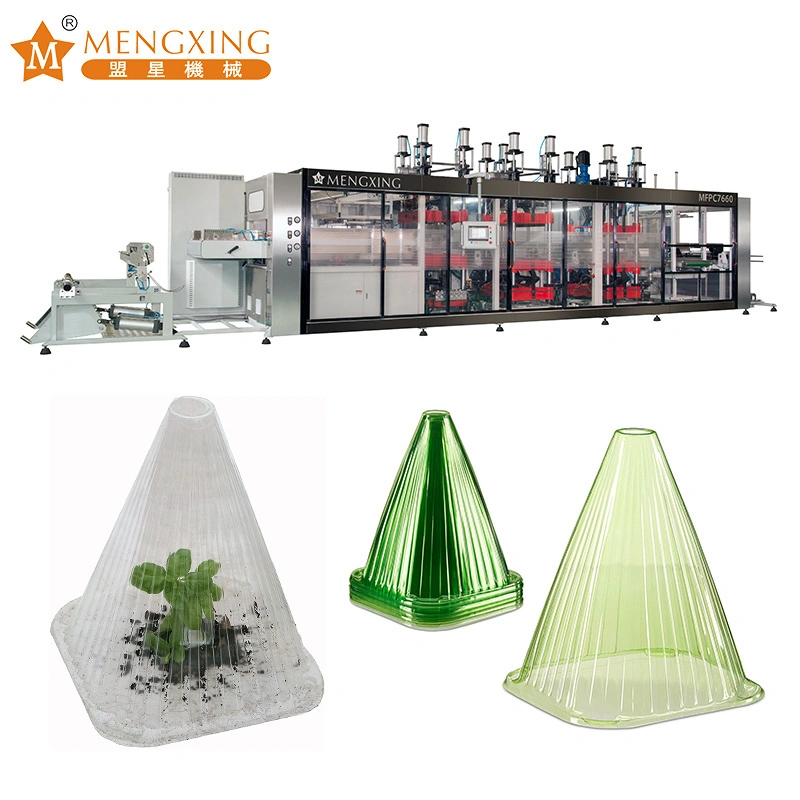

MFPC8260RD 4 Stations Pressure & Vacuum Forming Machine
I,Usage

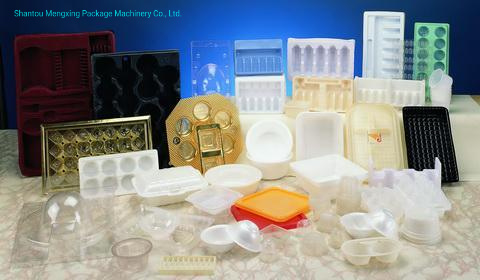

The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG Etc.
III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7.Forming,Punching,cutting unit mold open and close controlled by servo motor, products automatically count.
IV,Technical Parameter
V,Technical Components
VI,Sample Pictures
![High Survival Tray Seedling Cover Plastic Making Machine Plastic Seed Tray Thermoforming Machine Vacuum Forming Machine]()
![High Survival Tray Seedling Cover Plastic Making Machine Plastic Seed Tray Thermoforming Machine Vacuum Forming Machine]()
VII,Certifications
![High Survival Tray Seedling Cover Plastic Making Machine Plastic Seed Tray Thermoforming Machine Vacuum Forming Machine]()
VIII,Workshop Pictures
![High Survival Tray Seedling Cover Plastic Making Machine Plastic Seed Tray Thermoforming Machine Vacuum Forming Machine]()
IX,Package
![High Survival Tray Seedling Cover Plastic Making Machine Plastic Seed Tray Thermoforming Machine Vacuum Forming Machine]()
X,Exhibition
![High Survival Tray Seedling Cover Plastic Making Machine Plastic Seed Tray Thermoforming Machine Vacuum Forming Machine]()
MFPC8260RD 4 Stations Pressure & Vacuum Forming Machine
I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG Etc.
III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7.Forming,Punching,cutting unit mold open and close controlled by servo motor, products automatically count.
8.Data memorization function can store running data.
9.Stacking system: Downward stacking.
9.Stacking system: Downward stacking.
10.Feeding width can be synchronously or independently adjusted in electrical way.
11.Heater will automatically push-out when air pressure is not enough.
12.Auto roll sheet loading, Quick mold change system, reduce the working load.
12.Auto roll sheet loading, Quick mold change system, reduce the working load.
IV,Technical Parameter
| Sheet width (mm) | 500-860 | |
| Sheet thickness (mm) | 0.1-1.5 | |
| Max roll sheet diameter (mm) | 800 | |
| Forming mold stroke (mm) | (Up ) 140,(down) 140 | |
| Mold clamping force/Punching force(ton) | 45 | |
| Max forming area (mm2) | 820×600 | |
| Forming mold width (mm) | 500-820 | |
| Max forming depth/height (mm) | 120/ 70 | |
| Cutting mold stroke(mm) | (up)80,(down)140 | |
| Max cutting area (mm2) | 820×600 | |
| Cutting force(ton) | 60 | |
| Cycle (time/ min) | Robot Stacking Max17 | |
| Downward Stacking Max30 | ||
| Cooling | Water cooling | |
| Air supply | volume (m3/ min) | ≥2 |
| Air pressure (MPa) | 0.8 | |
| Vacuum pump | Busch R5 0100 | |
| Power supply | 3 phase 4 line 380V50Hz | |
| Heater power (kw) | 120 | |
| Max general power (kw) | 160 | |
| Dimension (L×W×H) (mm) | 14500×3200×3200 | |
| Weight ( Ton ) | ≈19 | |
V,Technical Components
| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding servo motor(5.5kw) | Taiwan Delta |
| Forming up/down mold servo motor(4.5kw) | Taiwan Delta |
| Punching up/down mold servo motor(4.5kw) | Taiwan Delta |
| Cutting up/down mold servo motor(5.5+4.5kw/4.5kw) | Taiwan Delta |
| Robot Servo motor (2kw+2kw) | Taiwan Delta |
| Feeding Chain | Germany Iwis |
| Heater(196 pcs) | Germany Elstein |
| Contactor | Germany Siemens |
| Overload Relay | Germany Siemens |
| Relay | Germany Weidmuller |
| Solid State Relay (SSR) | Switzerland Carlo Gavazzi |
| Vacuum Pump | Germany Busch |
| Electronic pressure sensor | Taiwan Delta |
| Automatic Lubrication Unit System | Taiwan ChenYing |
| Pneumatic Solenoid valve | JAPAN SMC |
| Pneumatic Cylinder | JAPAN SMC & Taiwan Airtac |
VI,Sample Pictures
VII,Certifications
VIII,Workshop Pictures
IX,Package
X,Exhibition
