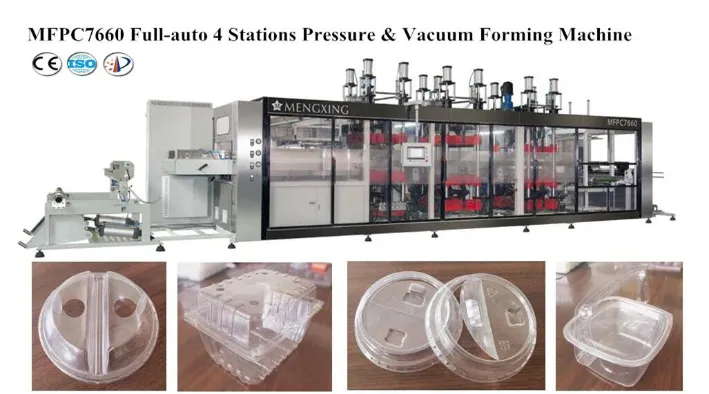

Flower Pot Making Machine (MFPC 7660)

Flower Pot Making Machine (MFPC 7660)

Add success, do you want to check your shopping cart?


Basic Info.

Model NO.
MFPC 7660
HS Code
Flower Pot Making Machine (MFPC 7660)


The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .

II,Suitable Sheet

III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual          heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7.Forming,Punching,cutting unit mold open and close controlled by servo motor, products automatically count.
8.Data memorization function can store running data.
9.Stacking system: Downward stacking.
10.Feeding width can be synchronously or independently adjusted in electrical way.
11.Heater will automatically push-out when air pressure is not enough.
12.Auto roll sheet loading, Quick mold change system, reduce the working load.

IV,Technical Parameter
Parameter MFPC7660(mode No.)
Sheet width (mm)500-800
Sheet thickness (mm)0.1-1.5
Max.dia.of sheet roll (mm)800
Forming mold stroke (mm)(Up ) 140,(down) 140
Mold clamping force/Punching force(ton)45
Max. forming area (mm2)760×600
Forming mold width (mm)500-760
Max. forming depth/height (mm)120/ 70
Cutting mold stroke(mm)(up)80,(down)140
Max. cutting area (mm2)760×600
Cutting force(ton)60
Cycle (time/ min)Max30
Cooling Water cooling
Gas sourceAir supply (m3/min)2
Pressure (MPa)0.6
Vacuum pumpBusch R5 0100
Power supply3 phase 4 line 380V50Hz
Heater power (Kw)120
Max. general power (Kw)160
Dimension  (L×W×H) (mm)14500×3200×3200
Weight  ( Ton )18

V,Technical Components
PLC Taiwan Delta
Touch Screen Monitor ( 10.4inch /Color )Taiwan Delta
Feeding servo motor(5.5kw)Taiwan Delta
Forming up/down mold servo motor(4.5kw)Taiwan Delta
Punching up/down mold servo motor(4.5kw)Taiwan Delta
Cutting up/down mold servo motor(5.5+4.5kw/4.5kw)Taiwan Delta
Stacking Servo motor (2kw)Taiwan Delta
Feeding Chain Germany Iwis
Heater(196 pcs)Germany Elstein
ContactorGermany Siemens
Overload RelayGermany Siemens
RelayGermany Weidmuller
Solid State Relay (SSR)Switzerland Carlo Gavazzi
Vacuum PumpGermany Busch
Electronic pressure sensorTaiwan Delta
Automatic Lubrication Unit System Taiwan ChenYing
Pneumatic Solenoid valveJapan SMC
Pneumatic CylinderTaiwan Airtec

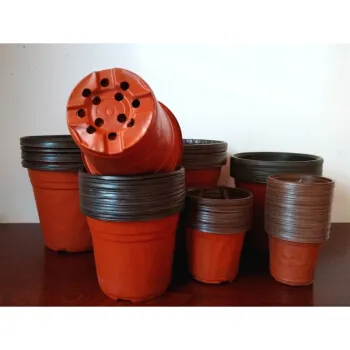

VI,Sample Pictures

Flower Pot Making Machine (MFPC 7660)

Flower Pot Making Machine (MFPC 7660)

VIII,Workshop Pictures
Flower Pot Making Machine (MFPC 7660)


Flower Pot Making Machine (MFPC 7660)

Flower Pot Making Machine (MFPC 7660)

No any other intermediate process, Shantou Mengxing Package Machinery Co.,Ltd. could provide you a competitive market price with high quality. It offers wide options for operators that items can be stacked upward or downward. With the fast development of the industry, the demand of the product is further increased. It offers wide options for operators that items can be stacked upward or downward.
