I,Usage

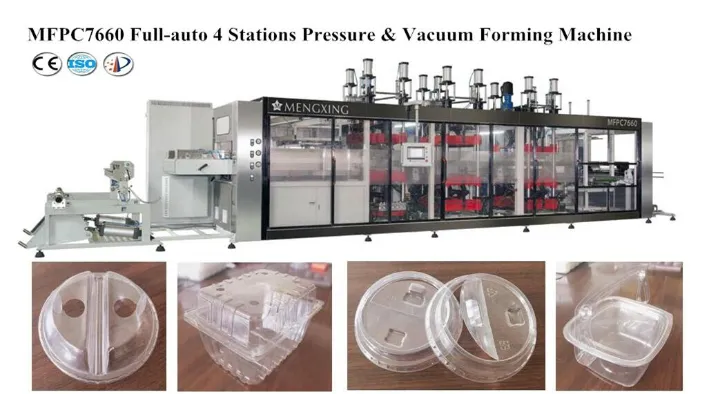

The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .

II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG Etc.

III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7.Forming,Punching,cutting unit mold open and close controlled by servo motor, products automatically count.

8.Data memorization function can store running data.
9.Stacking system: Downward stacking.

10.Feeding width can be synchronously or independently adjusted in electrical way.

11.Heater will automatically push-out when air pressure is not enough.
12.Auto roll sheet loading, Quick mold change system, reduce the working load.

IV,Technical Parameter

Parameter		MFPC7660(mode No.)
Sheet width (mm)		500-800
Sheet thickness (mm)		0.1-1.5
Max.dia.of sheet roll (mm)		800
Forming mold stroke (mm)		(Up ) 140,(down) 140
Mold clamping force/Punching force(ton)		45
Max. forming area (mm²)		760×600
Forming mold width (mm)		500-760
Max. forming depth/height (mm)		120/ 70
Cutting mold stroke(mm)		(up)80,(down)140
Max. cutting area (mm²)		760×600
Cutting force(ton)		60
Cycle (time/ min)		Max30
Cooling		Water cooling
Gas source	Air supply (m³/min)	≥2
	Pressure (MPa)	0.6
Vacuum pump		Busch R5 0100
Power supply		3 phase 4 line 380V50Hz
Heater power (Kw)		120
Max. general power (Kw)		160
Dimension (L×W×H) (mm)		14500×3200×3200
Weight ( Ton )		≈18

V,Technical Components

PLC	Taiwan Delta
Touch Screen Monitor ( 10.4″inch /Color )	Taiwan Delta
Feeding servo motor(5.5kw)	Taiwan Delta
Forming up/down mold servo motor(4.5kw)	Taiwan Delta
Punching up/down mold servo motor(4.5kw)	Taiwan Delta
Cutting up/down mold servo motor(5.5+4.5kw/4.5kw)	Taiwan Delta
Stacking Servo motor (2kw)	Taiwan Delta
Feeding Chain	Germany Iwis
Heater(196 pcs)	Germany Elstein
Contactor	Germany Siemens
Overload Relay	Germany Siemens
Relay	Germany Weidmuller
Solid State Relay (SSR)	Switzerland Carlo Gavazzi
Vacuum Pump	Germany Busch
Electronic pressure sensor	Taiwan Delta
Automatic Lubrication Unit System	Taiwan ChenYing
Pneumatic Solenoid valve	Japan SMC
Pneumatic Cylinder	Taiwan Airtec

VI,Sample Pictures
