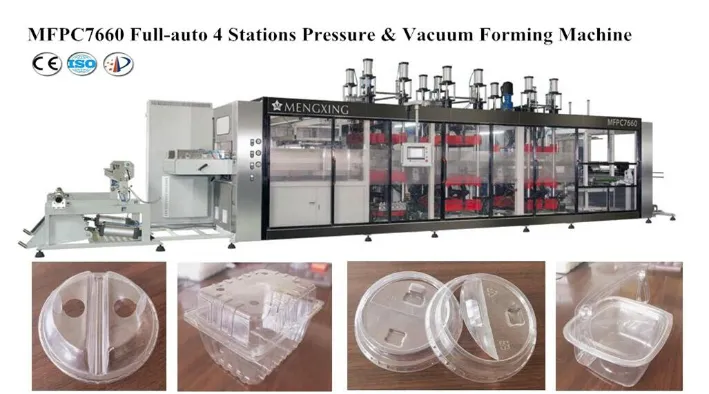

Parameter | MFPC7660(mode No.) | |
Sheet width (mm) | 500-800 | |
Sheet thickness (mm) | 0.1-1.5 | |
Max.dia.of sheet roll (mm) | 800 | |
Forming mold stroke (mm) | (Up ) 140,(down) 140 | |
Mold clamping force/Punching force(ton) | 45 | |
Max. forming area (mm2) | 760×600 | |
Forming mold width (mm) | 500-760 | |
Max. forming depth/height (mm) | 120/ 70 | |
Cutting mold stroke(mm) | (up)80,(down)140 | |
Max. cutting area (mm2) | 760×600 | |
Cutting force(ton) | 60 | |
Cycle (time/ min) | Max30 | |
Cooling | Water cooling | |
Gas source | Air supply (m3/min) | ≥2 |
Pressure (MPa) | 0.6 | |
Vacuum pump | Busch R5 0100 | |
Power supply | 3 phase 4 line 380V50Hz | |
Heater power (Kw) | 120 | |
Max. general power (Kw) | 160 | |
Dimension (L×W×H) (mm) | 14500×3200×3200 | |
Weight ( Ton ) | ≈18 |
PLC | Taiwan Delta |
Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
Feeding servo motor(5.5kw) | Taiwan Delta |
Forming up/down mold servo motor(4.5kw) | Taiwan Delta |
Punching up/down mold servo motor(4.5kw) | Taiwan Delta |
Cutting up/down mold servo motor(5.5+4.5kw/4.5kw) | Taiwan Delta |
Stacking Servo motor (2kw) | Taiwan Delta |
Feeding Chain | Germany Iwis |
Heater(196 pcs) | Germany Elstein |
Contactor | Germany Siemens |
Overload Relay | Germany Siemens |
Relay | Germany Weidmuller |
Solid State Relay (SSR) | Switzerland Carlo Gavazzi |
Vacuum Pump | Germany Busch |
Electronic pressure sensor | Taiwan Delta |
Automatic Lubrication Unit System | Taiwan ChenYing |
Pneumatic Solenoid valve | Japan SMC |
Pneumatic Cylinder | Taiwan Airtec |
