Automatic BOPS Plastic Thermoforming Machine with Stacking (MCIM 7660)-Mengxing

Basic Info.

Model NO.

MCIM 7660

HS Code

84774090

Automatic BOPS Plastic Thermoforming Machine with Stacking (MCIM 7660)

I,Usage
This machine is designed for producing all size packaging containers, in open-type with thin wall, by using roll-sheet, under high-speed vacuum suction-forming processing. The products made by this machine can be used for the package of foods, tourist-goods, textile, medical, toy, cosmetic, electrical elements and daily used hard-ware, etc.
Suitable Sheet
Starch-deposit sheets, light-deposit sheet, environment sheet, APET, PETG. PVC, HIPS, PET, PS, OPS,etc.

II,Structure Feature
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Forming type: pressure and vacuum forming
3. Up/down mould forming type.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Up heater with 4 sections heating, down heater with 3 sections heating. With sheet edge preheating.
6. With sheet edge preheating. Avoid sheet broken.
7. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage
8. Forming and cutting station open/close mould controlled by servo motor, high cutting precision. products automatically accounting output.
9. Stacking type: downward stacking/manipulator stacking.
10. With products details and running data memorization function.
11. With quickly changing mould system, , more efficient.
12. Feeding width can be synchronously or independently adjusted in electrical way.
13. Heater automatically push-out when the sheet is over
14. Auto roll sheet loading, reduce the working load.

III,Technical Parameter

Parameter		MCIM 7660(mode No.)
Sheet width range(mm)		500-800
Available sheet thickness (mm)		0.2-1.5
Max.dia.of sheet roll (mm)		800
Forming mould stroke (mm)		Up mould: 140,Down mould: 210
Locking mould force(ton)		30
Max. forming area (mm²)		760×600
Min. forming area (mm²)		500×380
Forming mould width (mm)		500-760
Forming mould length(mm)		460-600
Max.forming depth/height (mm)		Manipulator :90 /80; Downward stacking:175/125
Cutting force(ton)		45
Stacking method		Downward stacking/Manipulator stacking
Cycle time (cycle/ min)		Manipulator: Max18;Downward stacking:Max30
Cooling Outlet		Water cooling
Air source	Air supply(m³/ min)	≥5
	Pressure (MPa)	0.8
Vacuum pump		Busch R5 0100
Power supply		3 phase 4 lines 380V50Hz
Heater power (Kw)		150
General power (Kw)		200
Dimension (L×W×H) (mm)		10040×2600×3400
Weight ( Ton )		≈12

IV,Technical Configuration

PLC Controller	Taiwan Delta
Touch screen Monitor ( 10.4″inch /Color )	Taiwan Delta
Feeding servo motor(4.5kw)	Taiwan Delta
Forming up/down mould servo motor(5.5kw)	Taiwan Delta
Heater(250pcs)	Germany Elstein / Ireland Ceramicx
Contactor	Germany Siemens
Thermo relay	Germany Siemens
Relay	Germany Weidmuller
SSR	Switzerland Carlo Gavazzi
Vacuum pump	Germany Busch
Pneumatic component	Japan SMC
Cylinder	Japan SMC & Taiwan Airtec

V,Sample Picture

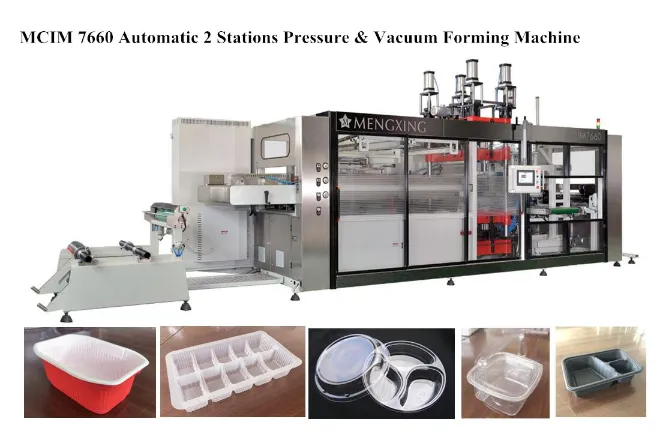

Automatic BOPS Plastic Thermoforming Machine with Stacking (MCIM 7660)

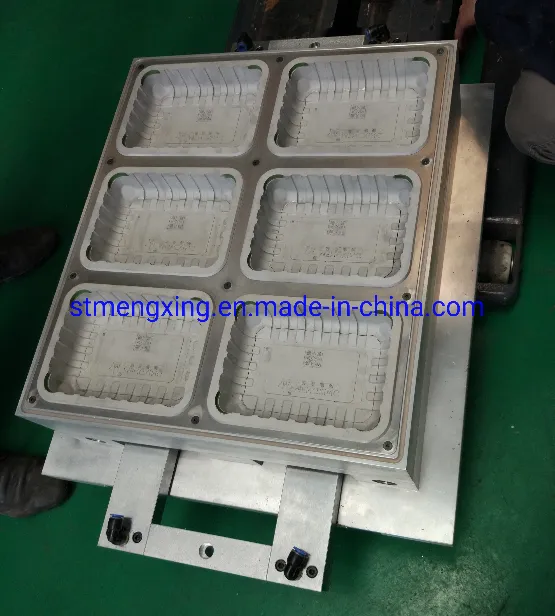

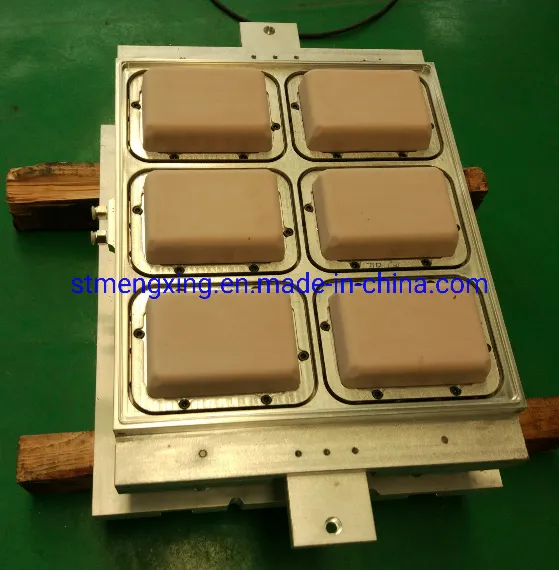

VI,Mold Picture

VII,Certifications

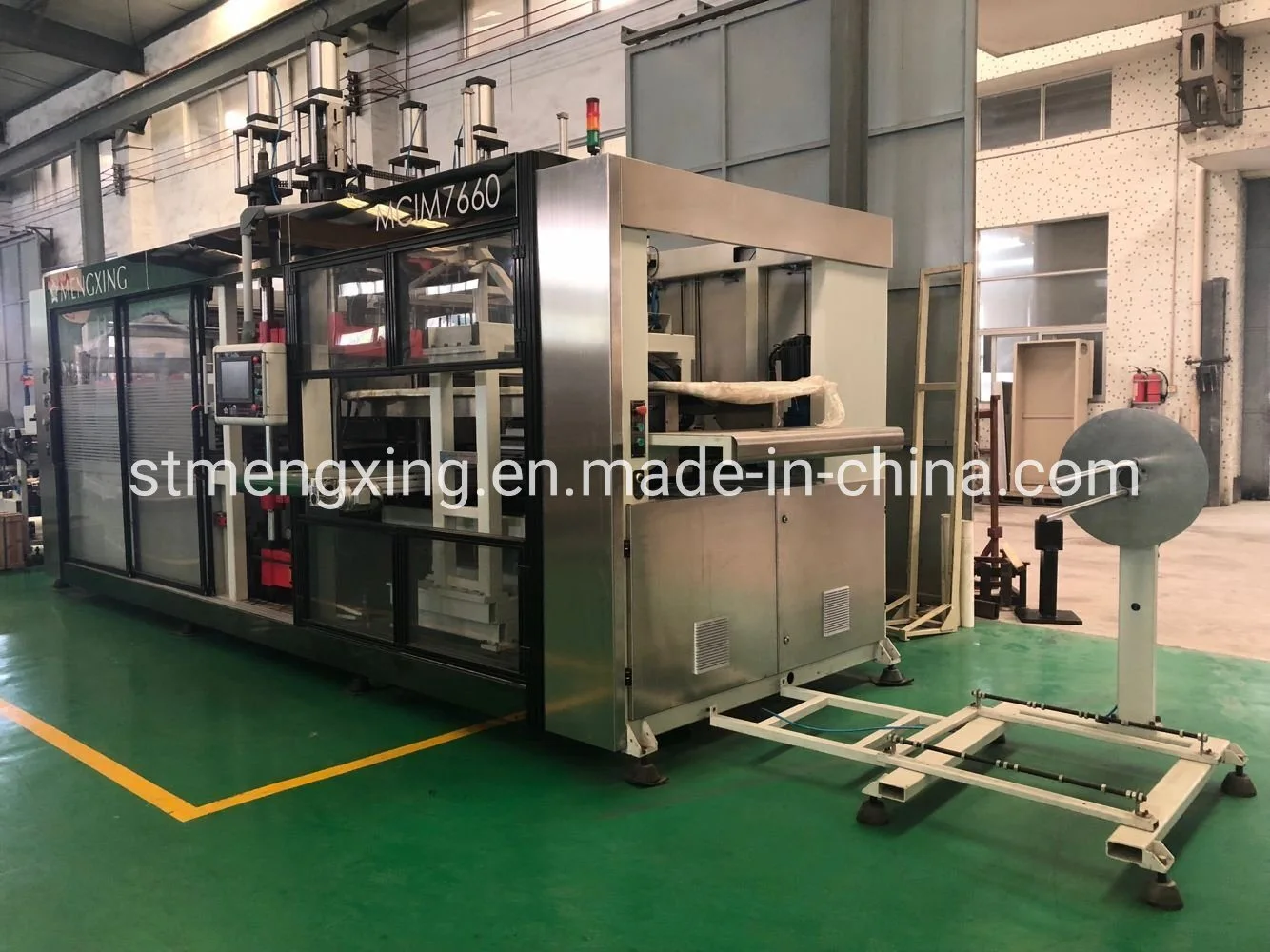

VIII,Workshop Pictures

IX,Package

Automatic BOPS Plastic Thermoforming Machine with Stacking (MCIM 7660)

X,Exhibition
Automatic BOPS Plastic Thermoforming Machine with Stacking (MCIM 7660)

Shantou Mengxing Package Machinery Co.,Ltd. selects optimal plan for our customers during pre-sale. Mainly made of stainless steel, the machine won't rust easily. Every production stage is highly valued to achieve high quality of vacuum forming machine. Mainly made of stainless steel, the machine won't rust easily.
